Configure the Camera
Many of the newer digital cameras now have built-in Wi-Fi that can easily connect them with smartphones or your desktop wirelessly. If your older camera does not have that feature, you can rely on. Eyefi™ is the market leader for OEM gaming merchandising. We've been with you in the game for decades providing specialty graphics for OEMs and digital displays. Eyefi™ is the visual merchandising strongarm of fi — a design-led collective dedicated to innovation. Definition of eye-fi in the Definitions.net dictionary. Meaning of eye-fi. What does eye-fi mean? Information and translations of eye-fi in the most comprehensive dictionary definitions resource on.

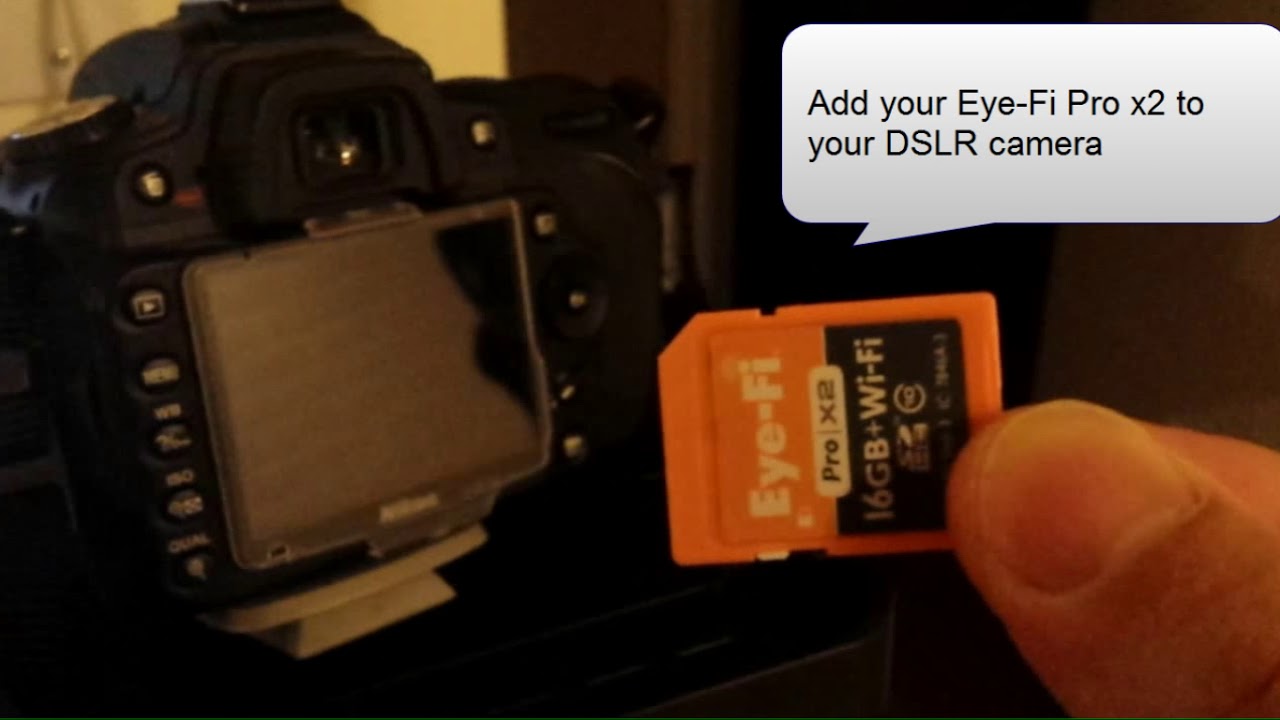

1. Insert the Eye-Fi card into the camera.
- Fix issue with Tags showing extra events. Fix missing photos on Oreo with Tags. Other bug fixes. Note: Android Oreo transfers to Eyefi Mobi, FlashAir W-03/W-04, and wifi cameras works well.
- A couple of tests and a few seconds later and your card is connected to the wireless network and you're on to the next step. Note you can associate the card with multiple access points but you need to have the card in the Eye-Fi card reader connected to a computer (with the Eye-Fi Manager software) to configure it.
2. Do not lose the activation code that came with the card! Send the activation code to Alden Systems Support or David Shaddix to ensure that it is stored safely. It is also a good idea to use a fine-tip Sharpie marker to write the 10-digit activation code directly on the Eye-Fi card.
3. Turn the camera on.
4. Press the Menu button.
5. Ensure that you are in the Shooting menu.
6. Use the selector circle around the Menu button to navigate down to the Image Size option.
7. Press the Menu button to select the Image Size.
8. In the list of available ratios, select one of the SMALL (S) options:
a. 16:9 – suited for display on High Def. devices
b. 4:3 – pictures have the same proportion as the camera display
c. 3:2 – pictures have the same proportion as a frame of 35mm film
d. 1:1 – pictures are square
9. In Nikon and Canon cameras, you may need to go to the Menu on the camera and locate the Eye-Fi uploads option under the wrench (setting) and enable uploads.
Configure the ToughBook
1. Download and install Eye-Fi Mobi Desktop: Eyefi Mobi Desktop for Windows
2. Create a new directory C:TempEye-Fi for temporary picture storage.
Activate Eye-Fi Card
When an Eye-Fi card is activated, it is registered to the software on that specific ToughBook. If the technician needs to swap to a different ToughBook, then the registration process must be repeated on the new ToughBook.
To register a card to a Mobi Desktop Client: https://help.eyefi.com/hc/en-us/articles/202388328-Managing-Your-Eyefi-Mobi-cards-in-Windows
1. Run Eye-Fi Mobi Desktop.
2. Enter your Eye-Fi Mobi card’s 10-digit activation code and click Next.
3. The next screen shows which directories Eye-Fi Mobi Desktop uses to store your photos. Click Browse to select C:TempEye-Fi as the directory for photos. Videos cannot be imported into Collect, so the path is irrelevant. IMPORTANT: Uncheck the options to create subfolders by date taken! Click Next.
4. Turn your camera on and take some pictures.
5. Note: The Eye-Fi card establishes an ad-hoc WiFi network after pictures are taken. Then it turns the network off after the transfer is complete. Therefore, the WiFi network used for the transfer is only available for a short period after taking a picture.
6. Place the camera in close proximity to the ToughBook.
7. The first time the ad-hoc WiFi is detected, you will be prompted to select a network location. Choose Work network.
8. You will see the progress in the desktop application.
9. Click the Done button after the Eye-Fi Mobi Desktop finishes transferring your photos.
Transferring Photos
When photos are taken on the camera, the Eye-Fi card automatically creates an ad-hoc wireless network to communicate to the desktop Mobi application. The application will make a copy of the photos from the Eye-Fi card in the path specified during the Eye-Fi card activation step above.
1. Take one or more pictures using the camera.
2. Leave the camera on.
3. Place the camera in close proximity to the ToughBook where the Mobi Desktop application is installed and registered.
4. The card will setup a temporary WiFi network to communicate to the Mobi Desktop application.
Eye Filler Cost
5. During the photo transfer, a popup will appear on the ToughBook screen indicating that a transfer is in progress. You can minimize this window to a small window and continue working on other tasks as the transfer occurs.
6. Once the transfer is complete and the Eye-Fi card does not detect any new photos taken (this may take a few seconds), the card will discontinue the temporary WiFi network. The Mobi Desktop application will return to a listening mode in the system tray on the ToughBook.
Eye First Vision Center
Deleting All Photos from the Eye-Fi Card (Daily)
After photos are transferred from the camera to the ToughBook via the Mobi Desktop application, the photos are not automatically deleted from the camera. However, the photos that have already been transferred are not transferred again. At the end of each day, it is recommended that all photos be erased from the Eye-Fi card to ensure that it does not run out of space. The Eye-Fi card can be formatted like any other memory card. Formatting will not delete any wireless network settings, but will delete any photos and videos on the card.
Eye Film Problems
1. Press Menu button.
2. Navigate left and then down to the Set-Up menu.
3. Navigate right and down to the Format option.
4. Press the Menu button to select the Format option.
5. Navigate up to the OK option.
6. Press Menu to select the OK option.
7. When the formatting is complete, the screen will return to the camera viewer.
After successfully setting up the Eye-Fi card and software, delete all images from C:TempEye-Fi directory and from the camera.
